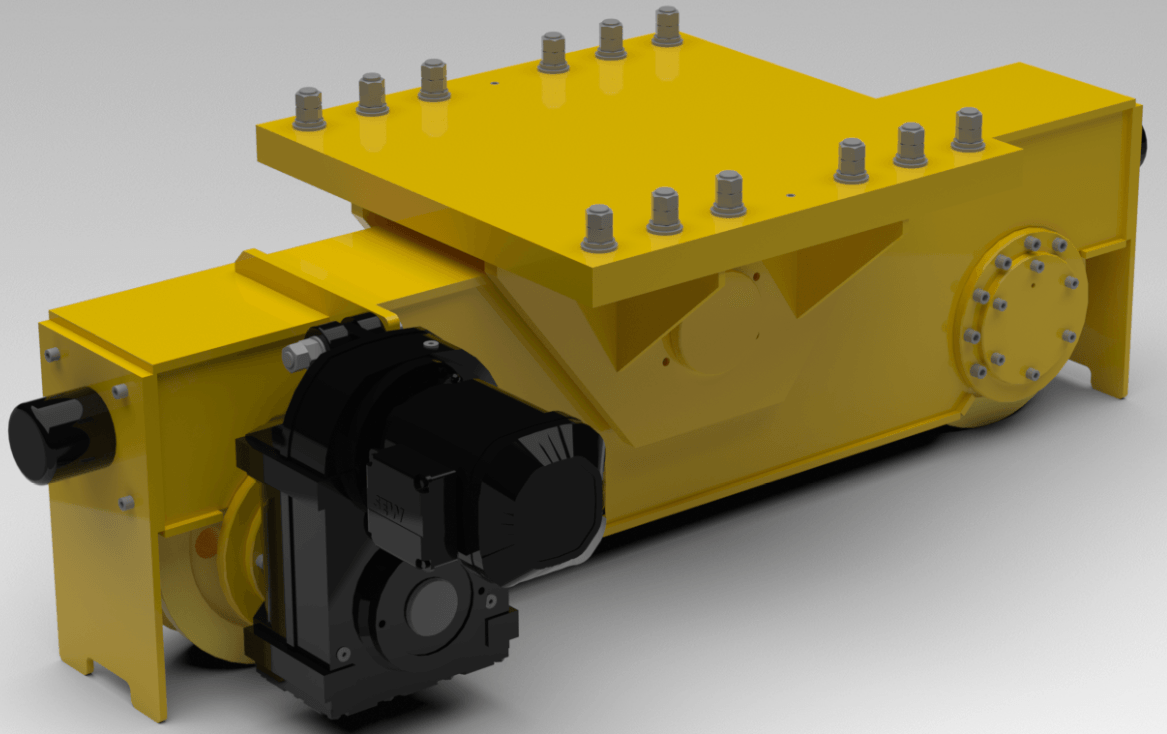

Hollow shaft Bogie for Gantry Crane
Hollow shaft Bogie for Gantry Crane
| Bogie for DG Gantry Crane | |||||
|---|---|---|---|---|---|
| Model Name | Wheel Size | Length of | Length of | Speed | No.of |
| (mm) | Boogie(S1) | Joint Beam(S3) | (m/min) | Gear Motor | |
| HSE200-XX×2-GCYY | 200mm * 8unit | 0.8m, 1m, 1.2m | 3m, 4m, 5m, 6m, 7m | 20, 32, 40 | 2, 4 |
| HSE250-XX×2-GCYY | 250mm * 8unit | 0.8m, 1m, 1.2m | 3m, 4m, 5m, 6m, 7m | 20, 32, 40 | 2, 4 |
| HSE320-XX×2-GCYY | 320mm * 8unit | 1m, 1.2m, 1.5m | 3m, 4m, 5m, 6m, 7m | 20, 32, 40 | 2, 4 |
| HSE400-XX×2-GCYY | 400mm * 8unit | 1.2m, 1.5m, 2m | 3m, 4m, 5m, 6m, 7m | 20, 32, 40 | 2, 4 |
| HSE500-XX×2-GCYY | 500mm * 8unit | 1.2m, 1.5m, 2m, 2.5m | 3m, 4m, 5m, 6m, 7m | 20, 32, 40 | 2, 4 |
| HSE630-XX×2-GCYY | 630mm * 8unit | 1.5m, 2m, 2.5m | 3m, 4m, 5m, 6m, 7m | 20, 32, 40 | 2, 4 |
