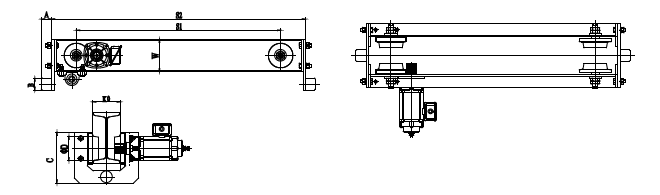

Hollow shaft Bogie for Gantry Crane
Hollow shaft Bogie for Gantry Crane
| Model | ΦD | S1 | S2 | A | ΦB | W | C | K0 |
|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| SCE120-10 | 120 | 1000 | 1244 | 50 | 60 | 160 | 250 | 110~300 |
| SCE120-15 | 1500 | 1744 | ||||||
| SCE120-20 | 2000 | 2244 | ||||||
| SCE150-10 | 150 | 1000 | 1350 | 80 | 80 | 200 | 300 | 120~350 |
| SCE150-15 | 1500 | 1850 | ||||||
| SCE150-20 | 2000 | 2350 | ||||||
| SCE200-10 | 200 | 1000 | 1430 | 80 | 80 | 320 | 420 | 130~400 |
| SCE200-15 | 1500 | 1930 | ||||||
| SCE200-20 | 2000 | 2430 |
